| Coad | 667619 | Substrate | UVFS | |
| Type | UV/Visible Chirped Mirror | Polarization | - | |
| Dimension(mm) | 25.4 x 6.35 | Clear Aperture | >80% | |
| Diameter | 25.4mm +0/-0.1mm | Surface Quality S1 | 20-10 S-D over CA as per MIL-PRF-13830B | |
| Thickness | 6.35mm +0/-0.1mm | Surface Quality S2 | Commercial polished | |
| Wavelength(nm) | 505 - 525 | Surface Flatness | <λ/10 @ 633 nm per 12mm dia | |
| Central Wavelength | - | Laser Damage Threshold | 250 uJ, 25 fs, <10mm laser beam | |
| GDD(fs²) | -200 | Coating Type | IBS Coating | |

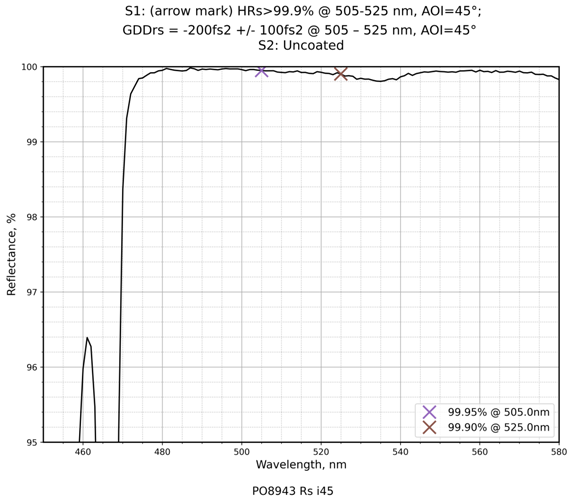

| AOI(°) | 45 | Coating Specifications | S1:HRs>99.9% @ 505-525 nm / S2:Uncoated |
Traders City price 569.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
