| Coad | 667617 | Substrate | UVFS | |

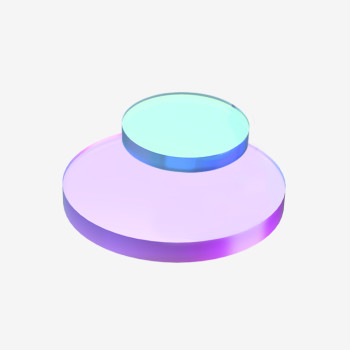

| Type | UV/Visible Chirped Mirror | Polarization | P,S | |
| Dimension(mm) | 50.8 x 12.7 | Clear Aperture | - | |
| Diameter | 50.8mm | Surface Quality S1 | - | |
| Thickness | 12.7mm | Surface Quality S2 | - | |
| Wavelength(nm) | 420 - 510 | Surface Flatness | - | |
| Central Wavelength | 465nm | Laser Damage Threshold | - | |

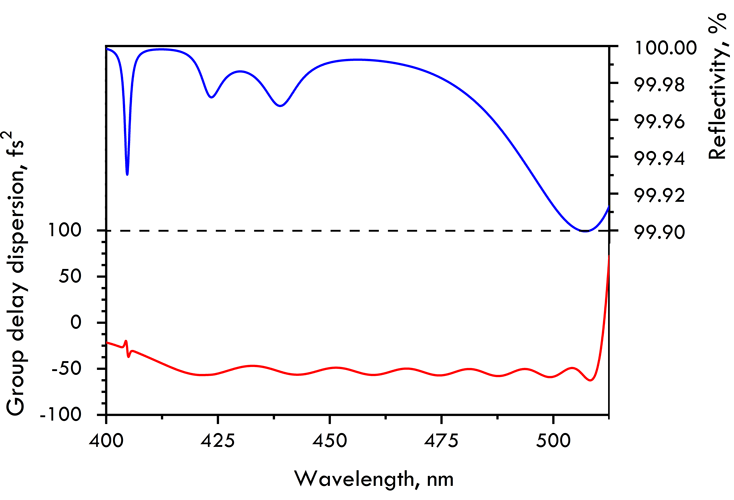

| GDD(fs²) | -50 | Coating Type | Dielectric Coating | |
| AOI(°) | 5 | Coating Specifications | R>99.5%@420-510nm |
Traders City price 837.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
