| Coad | 667608 | Substrate | UVFS | |

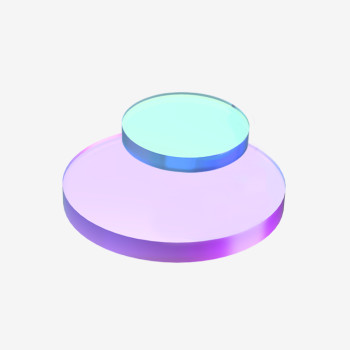

| Type | UV/Visible Chirped Mirror | Polarization | - | |
| Dimension(mm) | 12.7 x 6.35 | Clear Aperture | - | |
| Diameter | 12.7mm | Surface Quality S1 | - | |
| Thickness | 6.35mm | Surface Quality S2 | - | |
| Wavelength(nm) | 270 - 350 | Surface Flatness | - | |
| Central Wavelength | - | Laser Damage Threshold | 0.2J/cm² @800nm | |
| GDD(fs²) | -40 | Coating Type | Dielectric Coating | |
| AOI(°) | 45 | Coating Specifications | R>95%@270-350nm |
Traders City price 558.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
