| Coad | 667607 | Substrate | UVFS | |

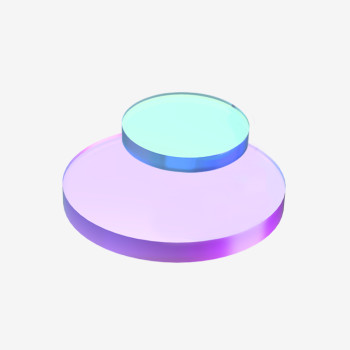

| Type | UV/Visible Chirped Mirror | Polarization | P,S | |
| Dimension(mm) | 80.0 x 20.0 x 20.0 | Clear Aperture | - | |
| Diameter | 80.0mm x 20.0mm | Surface Quality S1 | - | |
| Thickness | 20.0mm | Surface Quality S2 | - | |
| Wavelength(nm) | 268 - 278 | Surface Flatness | - | |
| Central Wavelength | 273nm | Laser Damage Threshold | - | |

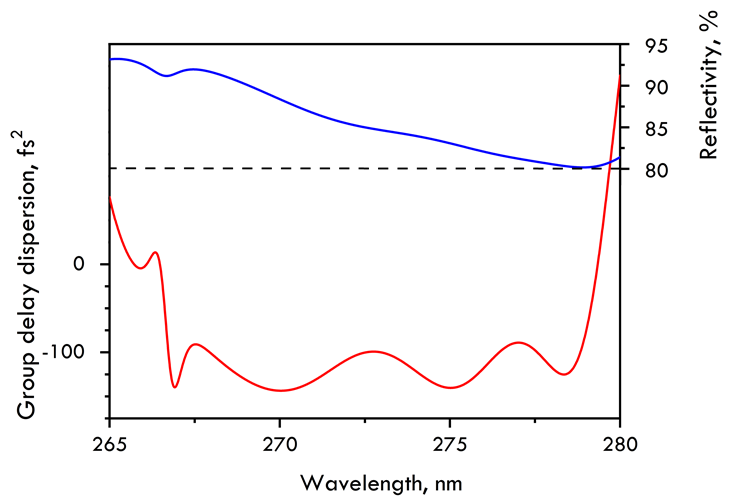

| GDD(fs²) | -116 | Coating Type | Dielectric Coating | |
| AOI(°) | 5 | Coating Specifications | R>80.0%@268-278nm |
Traders City price 879.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
