| Coad | 667593 | Type | 38mm Optical Post Without Base | |
| Diameter(mm) | 38.00 | Clamping Diameter (mm) | - | |
| Length（mm） | 75.00 | Quantity | 1 | |
| Material | 303 Stainless Steel | Keyhole Length | - | |
| Thickness | - | Base Diameter | - | |
| Base Thickness | - | Through Hole Diameter | 6.0mm | |
| Top Threaded Hole Specifications | M6 | Bottom Threaded Hole Specifications | M6 | |
| Positioning Pin | - | Parallelism | ＜30um | |
| Perpendicularity | ＜30um | Compatible Screw Specifications | - | |
| Weight | - | Surface Treatment | Sandblasted + passivated |
Traders City price 38.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller

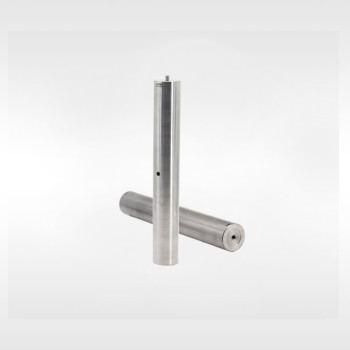

The LBTEK Ø38 mm base-free optical rod is made of 303 stainless steel through sandblasting and passivation. Both the bottom and top of the rod feature an M6 threaded hole, and the side of the rod has a Ø6 mm through hole. A ball-end screwdriver can pass through this hole to provide greater torque when fastening components. The Ø38 mm base-free optical rod is available in 10 length options: 25 mm, 50 mm, 75 mm, 100 mm, 150 mm, 200 mm, 250 mm, 300 mm, 350 mm, and 400 mm.
