| Coad | 667589 | Type | Base-mounted Flexure Post Mount 25mm | |
| Diameter(mm) | - | Clamping Diameter (mm) | 25.00 | |
| Length（mm） | 75.00 | Quantity | 1 | |
| Material | 6061-T6 Aluminum Alloy | Keyhole Length | - | |
| Thickness | - | Base Diameter | 47.0mm | |
| Base Thickness | 6.1mm | Through Hole Diameter | - | |
| Top Threaded Hole Specifications | - | Bottom Threaded Hole Specifications | - | |
| Positioning Pin | - | Parallelism | - | |
| Perpendicularity | - | Compatible Screw Specifications | - | |
| Weight | - | Surface Treatment | Black anodized |

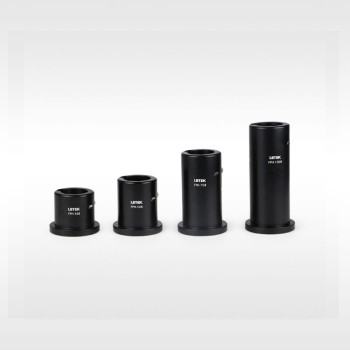

The LBTEK Ø25 mm flexible rod holder is designed to clamp Ø25 mm rods and is available in two types: the standard Ø25 mm flexible rod holder and the base-style Ø25 mm flexible rod holder. The difference between the two is that the standard Ø25 mm flexible rod holder (FPH-xxA series) has an M6 threaded through mounting hole at the bottom, with the rod unable to pass through the holder, leaving a minimum distance of 6.1 mm from the platform surface. In contrast, the base-style Ø25 mm flexible rod holder (FPH-xxB series) has a Ø47×6.1 mm base at the bottom, which can be used with the LBTEK rod holder fork block PHC1.5 for flexible mounting on the optical platform. The center of the base is a fully through hole, meeting the minimum beam height requirement.
Both types of rod holders feature a round groove and a square groove. The round groove allows the metal to bend under stress, thereby securing the rod, and after locking, the square groove forms two fixed contact lines with the rod to ensure maximum clamping force. The flexible locking function is achieved by using an M4 internal hexagonal cylindrical screw.
The LBTEK base-style Ø25 mm flexible rod holder uses a 3 mm hex wrench to tighten the M4 internal hexagonal cylindrical screw for flexible locking. The circular groove design allows the metal to bend, securing the rod in place. Once locked, the square groove forms two fixed contact lines with the rod to ensure maximum clamping force. The center through hole of the base-style flexible rod holder is fully passed through to the bottom, meeting the minimum beam height requirement. The bottom features a Ø47×6.1 mm mounting base, which can be used with the rod holder fork block PHC1.5 for flexible mounting on the optical breadboard.
