| Coad | 667556 | Type | 12mm Post | |
| Diameter(mm) | 12.00 | Clamping Diameter (mm) | - | |
| Length（mm） | 100.00 | Quantity | 5 | |
| Material | 328 Stainless Steel | Keyhole Length | - | |
| Thickness | - | Base Diameter | - | |
| Base Thickness | - | Through Hole Diameter | 3.2mm | |
| Top Threaded Hole Specifications | M4 | Bottom Threaded Hole Specifications | M6 | |
| Positioning Pin | - | Parallelism | - | |
| Perpendicularity | - | Compatible Screw Specifications | - | |
| Weight | - | Surface Treatment | - |

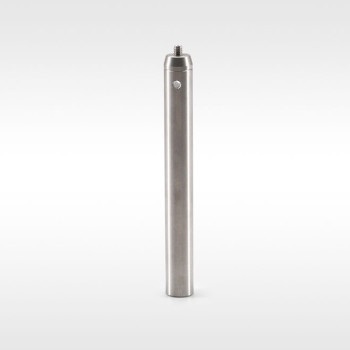

The LBTEK optical rod is made of 303 stainless steel through precision polishing. One end of the rod has an M6 threaded hole, and the other end has a removable M4 x 12 screw stud. The side of the rod features a Ø3.2 mm through hole, allowing a ball-end screwdriver to pass through and provide greater torque when fastening components. The rod is also available as a set of 5 pieces for sale.
The LBTEK Ø12 mm optical rod is made of non-magnetic 303 stainless steel through sandblasting. The bottom of the rod has an M6 threaded hole, and the top is equipped with a removable M4 screw stud. The side of the rod features a Ø3.2 mm through hole, which provides greater torque when fastening components. The Ø12 mm stainless steel optical rod is directly compatible with Ø12.7 mm rod holders and other Ø12.7 mm rod accessories.
