| Coad | 667536 | Type | 12.7mm Post | |
| Diameter(mm) | 12.70 | Clamping Diameter (mm) | - | |
| Length（mm） | 50.00 | Quantity | 5 | |
| Material | 308 Stainless Steel | Keyhole Length | - | |
| Thickness | - | Base Diameter | - | |
| Base Thickness | - | Through Hole Diameter | 3.2mm | |
| Top Threaded Hole Specifications | M4 | Bottom Threaded Hole Specifications | M6 | |
| Positioning Pin | - | Parallelism | - | |
| Perpendicularity | - | Compatible Screw Specifications | - | |
| Weight | - | Surface Treatment | Fine grinding |
Traders City price 14.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller

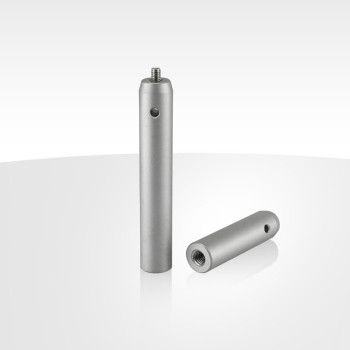

The LBTEK optical rod is made of 303 stainless steel through precision polishing. One end of the rod has an M6 threaded hole, and the other end has a removable M4 x 12 screw stud. The side of the rod features a Ø3.2 mm through hole, allowing a ball-end screwdriver to pass through and provide greater torque when fastening components. The rod is also available as a set of 5 pieces for sale.
The LBTEK optical rod is made of non-magnetic 303 stainless steel through precision polishing. The bottom of the rod has an M6 threaded hole, and the top is equipped with a removable M4 screw stud. The side of the rod has a Ø3.2 mm through hole, which provides greater torque when fastening components.
