| Coad | 667484 | Type | 25mm Post | |
| Diameter(mm) | 25.00 | Clamping Diameter (mm) | - | |
| Length（mm） | 400 ±0.05 | Quantity | 1 | |
| Material | 314 Stainless Steel | Keyhole Length | - | |
| Thickness | - | Base Diameter | - | |
| Base Thickness | - | Through Hole Diameter | - | |
| Top Threaded Hole Specifications | M6 | Bottom Threaded Hole Specifications | M6 | |
| Positioning Pin | Top Ø2 mm locating pins, non-through hole, 2 pieces | Parallelism | ＜40um | |
| Perpendicularity | ＜20um | Compatible Screw Specifications | - | |
| Weight | - | Surface Treatment | Sandblasted + passivated |

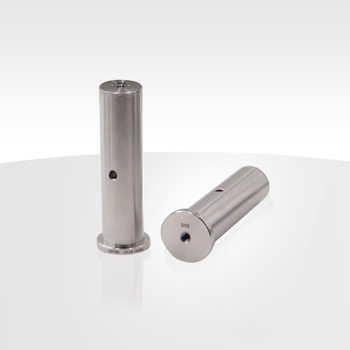

The LBTEK Ø25 mm Optical Post with Base is made of 303 stainless steel with a sandblasted and passivated finish. It is available in two top-threaded options: M4 and M6, with various length options for each type. All posts, except for the OP1B-12.5B4 (which has an M4 through hole), feature an M6 threaded hole at the bottom. The top of the post includes 2 Ø2 positioning pins for precise installation. Additionally, the side of the post has a Ø6 mm through hole, allowing a ball-head driver to pass through for increased torque when tightening components.
The LBTEK Optical Post with Base is made from non-magnetic 303 stainless steel with a sandblasted and passivated finish. The post features M6 threaded holes at both the top and bottom, and comes with one M6×16 hexagonal set screw for secure installation. The top includes two Ø2 positioning pins for precise installation. Additionally, the post has an Ø6 mm through hole on the side, allowing for increased torque when tightening components.
