| Coad | 667424 | Type | Integrated Post Mount Clamping Diameter 12.7mm Magnetic Base | |
| Diameter(mm) | - | Clamping Diameter (mm) | 12.70 | |
| Length（mm） | 150.00 | Quantity | 1 | |
| Material | 6061-T6Aluminum Alloy | Keyhole Length | - | |
| Thickness | - | Base Diameter | - | |
| Base Thickness | - | Through Hole Diameter | - | |
| Top Threaded Hole Specifications | - | Bottom Threaded Hole Specifications | M6 | |
| Positioning Pin | - | Parallelism | - | |
| Perpendicularity | - | Compatible Screw Specifications | M6 spring-loaded knurled hexagonal hand-tightening lock screw | |
| Weight | - | Surface Treatment | Black anodized |

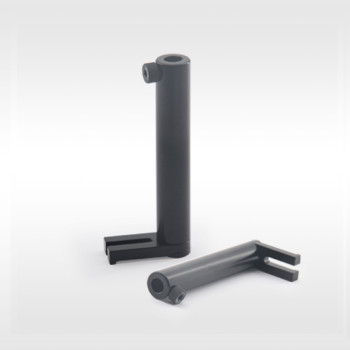

LBTEK offers the Ø12.7 mm Integrated Optical Post Holder. The grooves on the inner wall of the holder create dual-line contact with the post, ensuring a secure fit. It features an M6 spring-loaded knurled hex hand-tightening screw, which can be reinforced using a 5 mm hex wrench (Note: excessive torque can cause the locking screw to break, so it is recommended to use an L-shaped hex wrench and gently tighten by holding the short end of the wrench). The base of the fork clamp allows 360° rotation and includes an M6 mounting slot, offering maximum flexibility to mount components on optical platforms. The holder is available in both magnetic and non-magnetic versions. The magnetic version provides holding force before final locking, while the non-magnetic version is more affordable.
For height adjustment, the base of the holder has a through-hole, allowing the post to fully pass through to the bottom, ensuring that the minimum beam height requirements are met.In addition to the features mentioned above, LBTEK’s magnetic version includes 3 magnets at the base, which assist in providing additional stability before final locking.
