| Coad | 667408 | Type | 12mm Optical Post | |
| Diameter(mm) | 12.00 | Clamping Diameter (mm) | - | |
| Length（mm） | 25.00 | Quantity | 5 | |
| Material | 303 Stainless Steel | Keyhole Length | - | |
| Thickness | - | Base Diameter | 14.2mm | |
| Base Thickness | 3.1mm | Through Hole Diameter | 2.4mm | |
| Top Threaded Hole Specifications | M3 | Bottom Threaded Hole Specifications | M6 | |
| Positioning Pin | - | Parallelism | - | |
| Perpendicularity | - | Compatible Screw Specifications | - | |
| Weight | 0.100kg | Surface Treatment | Sandblasted + passivated |

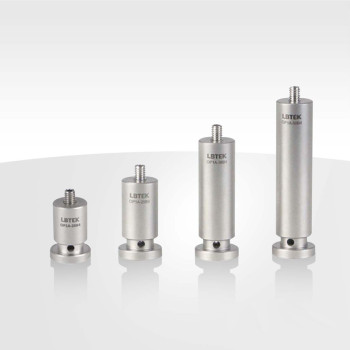

The LBTEK Ø12 mm Optical Post with Base is made from 303 stainless steel and is commonly used to connect optical component mounting brackets. The post has M3/M4 threaded holes at the top for secure attachment of optical components, and M6 threaded holes at the bottom for further expansion with various optical and mechanical components. The base design allows it to be mounted on an optical platform or breadboard using clamps like the LBTEK mini clamp PHA-16S.
The LBTEK Ø12 mm optical post with base features an M3 threaded hole at the top and comes with a removable M3×8 stud, making it compatible with most optical component mounting brackets. The bottom of the post includes an M6 threaded hole and is designed for easy mounting on optical platforms or breadboards using the LBTEK Mini Fork Clamp PHA-16S. The post also features a Ø2.4 mm through hole on the side, providing additional torque when tightening the components. The post comes with M3×8 hex set screws and is available in packs of 5 units.
