| Coad | 667394 | Type | 12mm Optical Post with Base | |
| Diameter(mm) | 12.00 | Clamping Diameter (mm) | - | |
| Length（mm） | 25.00 | Quantity | 5 | |
| Material | 303 Stainless Steel | Keyhole Length | - | |
| Thickness | - | Base Diameter | 14.2mm | |
| Base Thickness | 3.1mm | Through Hole Diameter | 2.4mm | |
| Top Threaded Hole Specifications | M4 | Bottom Threaded Hole Specifications | M6 | |
| Positioning Pin | - | Parallelism | - | |
| Perpendicularity | - | Compatible Screw Specifications | - | |
| Weight | 0.100kg | Surface Treatment | Sandblasted + passivated |

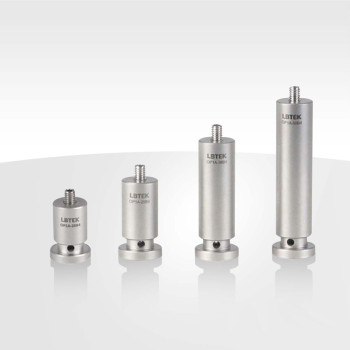

The LBTEK Ø12 mm Optical Post with Base is made from 303 stainless steel and is commonly used to connect optical component mounting brackets. The post has M3/M4 threaded holes at the top for secure attachment of optical components, and M6 threaded holes at the bottom for further expansion with various optical and mechanical components. The base design allows it to be mounted on an optical platform or breadboard using clamps like the LBTEK mini clamp PHA-16S.
The post also features a Ø2.4 mm through hole on the side for easier installation and additional torque during assembly. The top includes a removable M4×12 stud, compatible with most optical component mounting brackets, and the base is designed for quick and secure mounting. LBTEK offers customized options for special surface treatments, length, and dimensions based on specific needs.
