| Coad | 667382 | Substrate | UVFS | |
| Type | 2000-5000nm Chirped Mirror | Polarization | P | |
| Dimension(mm) | 25.4 x 6.35 | Clear Aperture | - | |
| Diameter | 25.4mm | Surface Quality S1 | - | |
| Thickness | 6.35mm | Surface Quality S2 | - | |
| Wavelength(nm) | 2000 - 2200 | Surface Flatness | - | |
| Central Wavelength | 2100nm | Laser Damage Threshold | - | |

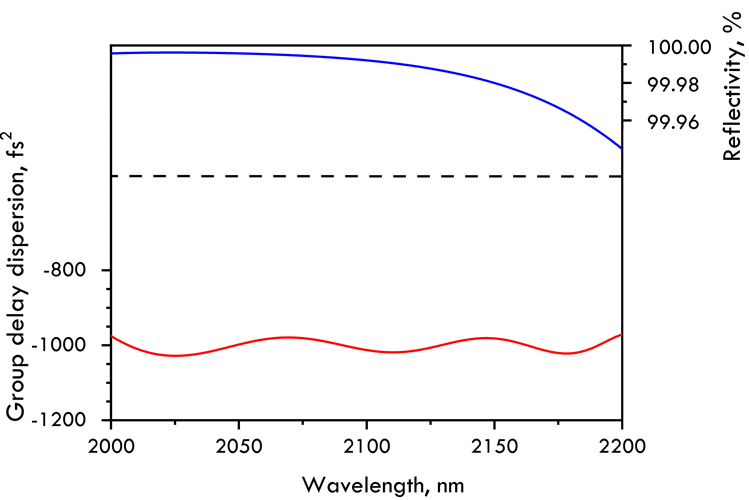

| GDD(fs²) | -1000 | Coating Type | Dielectric Coating | |
| AOI(°) | 5 | Coating Specifications | R>99.95%@2000-2200nm |
Traders City price 1283.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
