| Code | 667379 | Type | Grating Mount Adapter | |
| Material | 6061-T6 aluminum alloy | Surface treatment | Black anodizing | |
| Mounting diameter | Ø25.4mm | Clamping height | 20-40mm | |
| Clamping thickness | 5-10mm | Minimum clamping width | 18mm |
Material:
6061-T6 aluminum alloy
Clamping height:
20-40 mm
Minimum clamping width:
18 mm
Clamping thickness:
5-10 mm

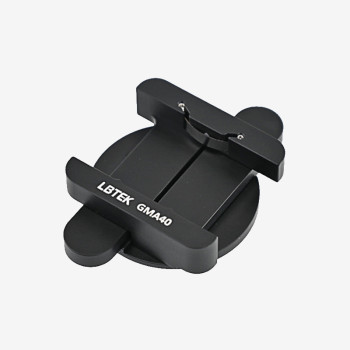

The LBTEK Grating Mount Adapter can be installed on an Ø1-inch optical mount, allowing for pitch and yaw adjustment of the clamped grating. The simple structure of this adapter uses sliding blocks at the top and bottom of the adapter, which allow the back of the blocks to move within a machined slot, adjusting the height of the clamped grating and rectangular lenses. By tightening the two M3 screws at the back, the positions of the grating and rectangular lenses are secured. The mount features a three-point adjustable installation mechanism, including two contact lines on the bottom surface and one spring contact on the top.
