| Code | 667365 | Type | Optical Component Adapter | |
| Material | 303 stainless steel | Overall dimensions | Ø15 × 6mm | |
| Optical component diameter | Ø2.4mm | External thread specification | SM05 |
Material:
303 stainless steel
Surface treatment:
Sandblasted + passivated
Thread specification:
SM05
Applicable optical component diameter:
Ø2, Ø2.4, Ø2.65, Ø3, Ø4, Ø4.5, Ø4.7, Ø6, Ø6.33 mm, Ø6.5, Ø7.2, Ø9.95 mm
Optical component fixing method:
Adhesion

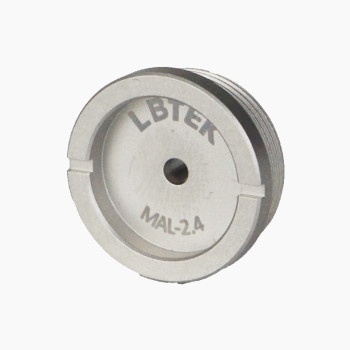

The LBTEK stainless steel adapter with external threads is made from 303 stainless steel and features dispensing groove holes, allowing aspheric condensing lenses to be adhered to the adapter using epoxy resin. It is compatible with aspheric condensing lenses with diameters of Ø2, Ø2.4, Ø2.65, Ø3, Ø4, Ø4.5, Ø4.7, Ø6, Ø6.33 mm, Ø6.5, Ø7.2, Ø9.95 mm. The adapter can be mounted into optical component mounts with SM05 internal threads using the included SM05 external thread. LBTEK also offers custom optical component adapters in special sizes and specifications. Please contact technical support for customization.
