| Code | 667349 | Type | 45° Mounting Adapter | |
| Dimensions | Ø25.0mm × 25.3mm | Material | Aluminum alloy | |
| Surface treatment | Black anodizing | Applicable products | AMM-1X and AMM-2X | |
| Top threaded hole specification | M4 | Included screws specification/quantity | 1 M4×10 and 1 M6×10 hex socket cap screw | |
| Bottom threaded hole specification | M6 |
Black anodized aluminum alloy
M6 and M4 mounting threaded holes
Dimensions: Ø25.0 mm × 25.3 mm

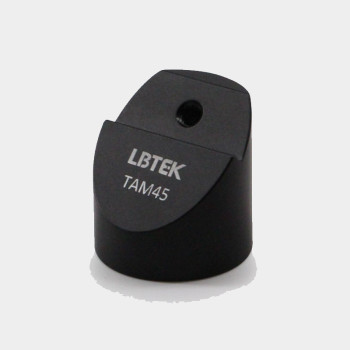

The LBTEK 45° Mounting Adapter, with dimensions Ø25.0 mm × 25.3 mm, is made from black anodized aluminum alloy. The adapter features an M4 threaded hole on its 45° angled plane, allowing the AMM series adjustable mounts to be directly fixed using a cap screw. When the AMM-1X is installed on the TAM45 and paired with the UBPH universal rotating base, the beam height at the center of the AMM-1X lens is 56 mm above the work surface. For the AMM-2X assembly, the beam height is 68 mm. (Note: It is not recommended to use with AMM-05X, as the threaded connection and inclined surface will interfere.) The bottom of the adapter has an M6 threaded hole, which can be used to mount a Ø25.0 mm rod or rod support base. The LBTEK 45° Mounting Adapter includes 1 M6 hex socket cap screw and 1 M4 hex socket cap screw.
