| Coad | 667345 | Substrate | UVFS Corning 7980 0F | |

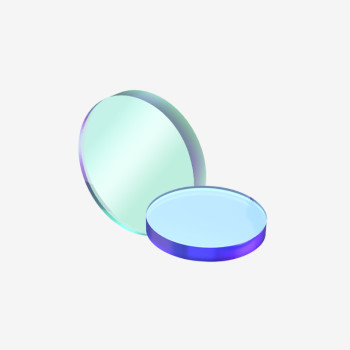

| Type | 1300-2000nm Chirped Mirror | Polarization | - | |
| Dimension(mm) | 25.4 x 6.35 | Clear Aperture | ≥20mm | |
| Diameter | 25.4mm +0/-0.1mm | Surface Quality S1 | 20-10 SD as per MIL-PRF-13830B | |
| Thickness | 6.35mm +0/-0.1mm | Surface Quality S2 | Inspection polished | |
| Wavelength(nm) | 1450 | Surface Flatness | <λ/8 @633 nm over 10 mm CA | |
| Central Wavelength | 1450nm | Laser Damage Threshold | - | |
| GDD(fs²) | -5000 | Coating Type | IBS Coating | |

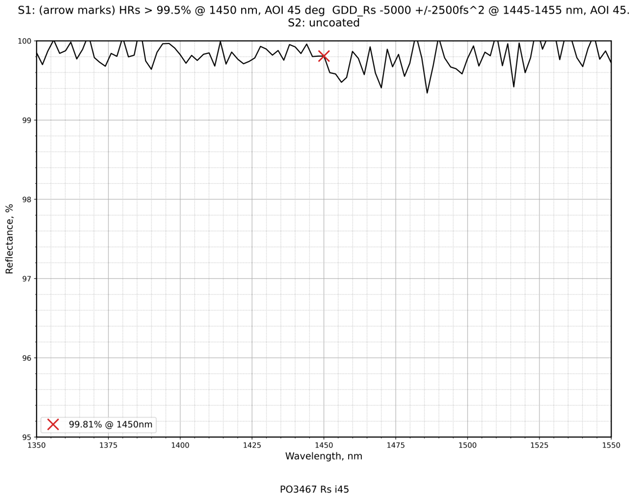

| AOI(°) | 45 | Coating Specifications | S1:HRs>99.5% @ 1450 nm / S2:Uncoated |
Traders City price 1542.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
