| Coad | 667341 | Substrate | UVFS | |

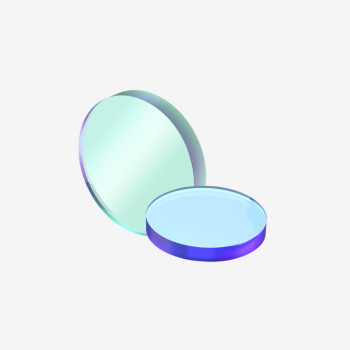

| Type | 1300-2000nm Chirped Mirror | Polarization | S | |
| Dimension(mm) | 25.4 x 6.35 | Clear Aperture | - | |
| Diameter | 25.4mm | Surface Quality S1 | - | |
| Thickness | 6.35mm | Surface Quality S2 | - | |
| Wavelength(nm) | 950 - 1200 | Surface Flatness | - | |
| Central Wavelength | 1064nm | Laser Damage Threshold | - | |
| GDD(fs²) | 0 | Coating Type | Dielectric Coating | |

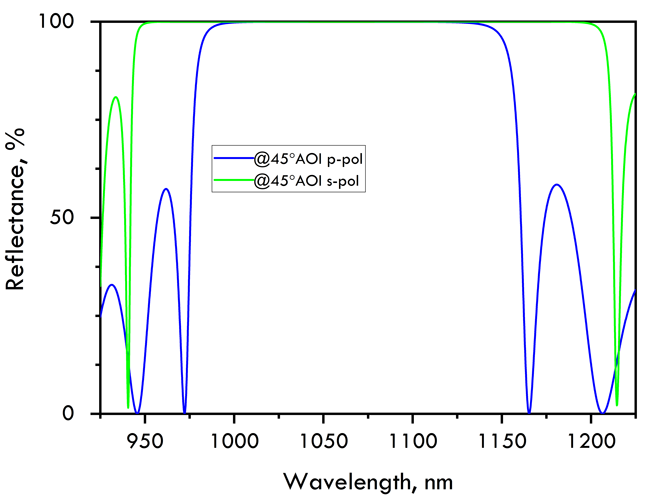

| AOI(°) | 45 | Coating Specifications | R>99.99%@950-1200nm,R>99.99%@1000-1150nm |
Traders City price 683.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
