| Coad | 667309 | Substrate | UVFS JGS1 | |
| Type | 1030nm Chirped Mirror | Polarization | - | |
| Dimension(mm) | 50.0 x 12.5 | Clear Aperture | 40mm | |
| Diameter | 50.0mm +0/-0.05mm | Surface Quality S1 | 20-10 S-D per CA | |
| Thickness | 12.5mm +0/-0.1mm | Surface Quality S2 | 20-10 S-D per CA | |
| Wavelength(nm) | 1010 - 1050 | Surface Flatness | <λ/8@633 nm per CA = 25 mm | |
| Central Wavelength | - | Laser Damage Threshold | - | |
| GDD(fs²) | -600 | Coating Type | IBS Coating | |

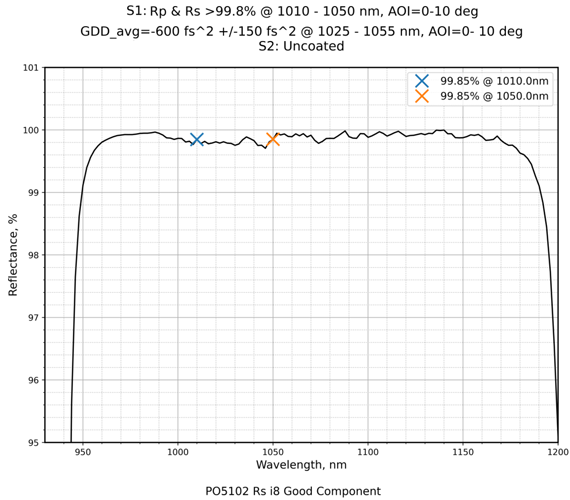

| AOI(°) | 0 - 10 | Coating Specifications | S1:Rp & Rs >99.8% @ 1010 - 1050 nm / S2:Uncoated |
Traders City price 795.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
