| Coad | 667307 | Substrate | UVFS Corning 7980 0F | |
| Type | 1030nm Chirped Mirror | Polarization | - | |
| Dimension(mm) | 12.7 x 5.0 | Clear Aperture | 10mm | |
| Diameter | 12.7mm +0/-0.05mm | Surface Quality S1 | 10-5 S-D per CA | |
| Thickness | 5.0mm +0/-0.1mm | Surface Quality S2 | Polished (<60-40 S-D) | |
| Wavelength(nm) | 1010 - 1050 | Surface Flatness | <λ/10@633 nm over 10mm area | |
| Central Wavelength | - | Laser Damage Threshold | - | |
| GDD(fs²) | -600 | Coating Type | IBS Coating | |

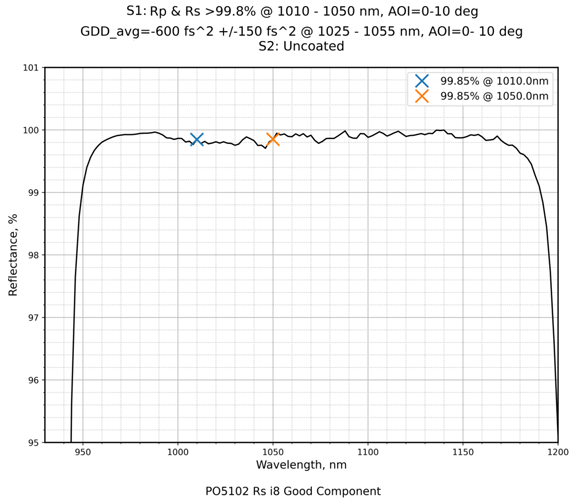

| AOI(°) | 0 - 10 | Coating Specifications | S1:HRp & HRs >99.8% @ 1010 - 1050 nm / S2:Uncoated |
Traders City price 98.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
