| Coad | 667301 | Substrate | UVFS | |

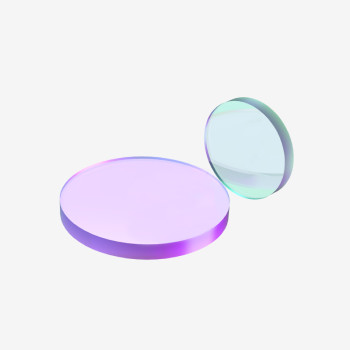

| Type | 1030nm Chirped Mirror | Polarization | - | |
| Dimension(mm) | 25.4 x 5.0 | Clear Aperture | >90% | |
| Diameter | 25.4mm +0/-0.1mm | Surface Quality S1 | 20-10 S-D | |
| Thickness | 5.0mm +0/-0.1mm | Surface Quality S2 | Commercial polish | |
| Wavelength(nm) | 980 - 1080 | Surface Flatness | <λ/10@633 nm over any 8 mm diameter area | |
| Central Wavelength | - | Laser Damage Threshold | - | |
| GDD(fs²) | -250 | Coating Type | IBS Coating | |

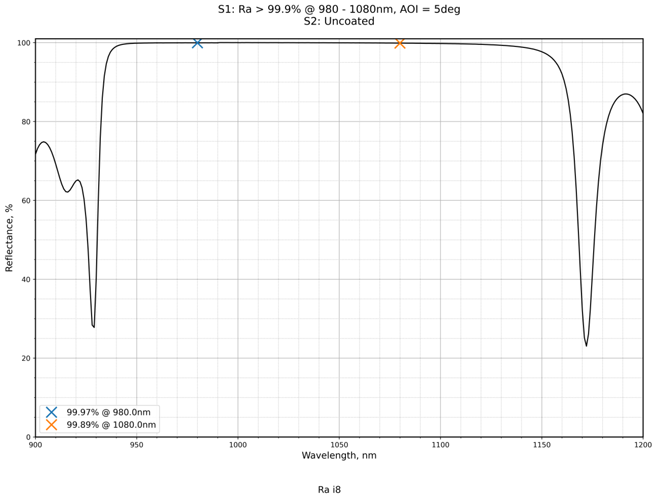

| AOI(°) | 5 | Coating Specifications | S1:HR>99.9% @ 980 – 1080nm / S2:Uncoated |
Traders City price 976.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
