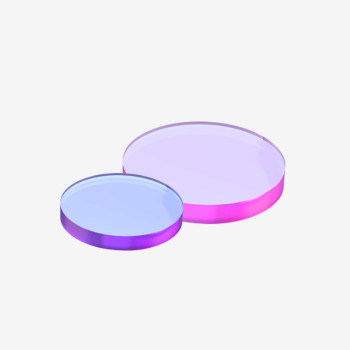

| Coad | 667273 | Type | 800nm Chirped Mirror | |
| Dimension(mm) | 12.7 x 6.35 | Polarization | P | |
| Diameter | 12.7mm | Thickness | 6.35mm | |
| Wavelength(nm) | 750 - 850 | Central Wavelength | 800nm | |

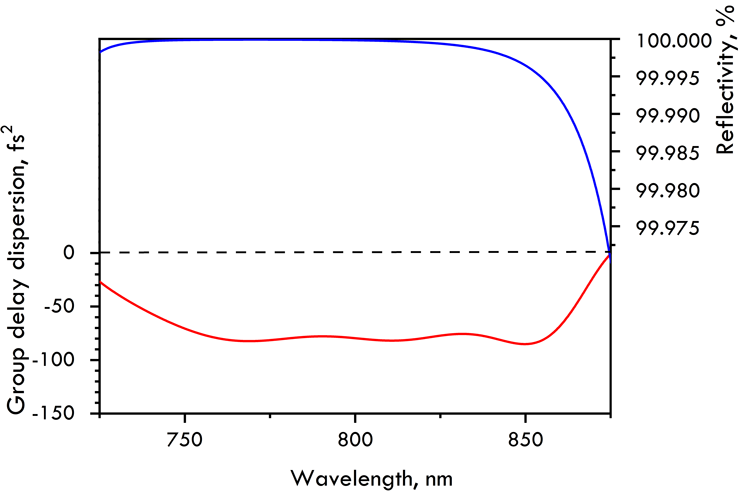

| GDD(fs²) | -80 | AOI(°) | 3 | |
| Substrate | UVFS | Clear Aperture | - | |
| Surface Quality S1 | - | Surface Quality S2 | - | |
| Surface Flatness | - | Laser Damage Threshold | 0.2J/cm² @800nm | |
| Coating Type | Dielectric Coating | Coating Specifications | R>99.98%@750-850nm |
Traders City price 854.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
