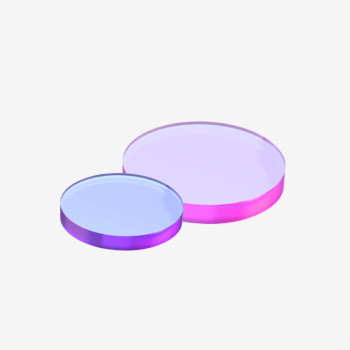

| Coad | 667268 | Type | 800nm Chirped Mirror | |
| Dimension(mm) | 38.1 x 12.7 | Polarization | S | |
| Diameter | 38.1mm | Thickness | 12.7mm | |
| Wavelength(nm) | 700 - 870 | Central Wavelength | 785nm | |

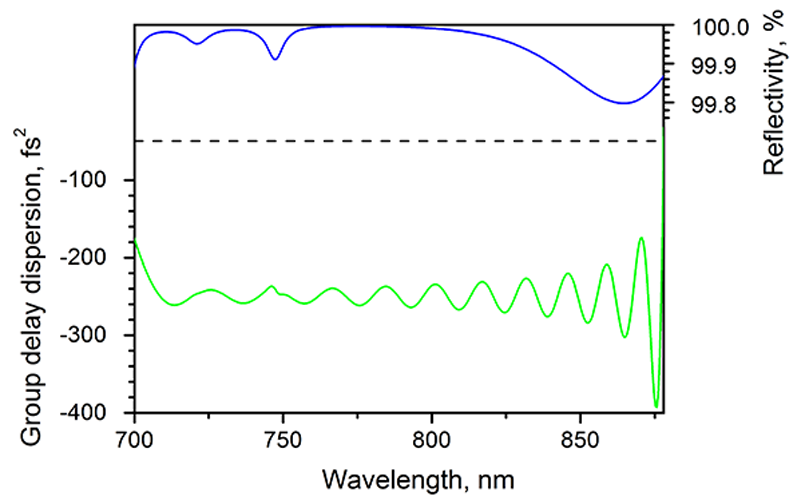

| GDD(fs²) | -250 | AOI(°) | 7 | |
| Substrate | UVFS | Clear Aperture | - | |
| Surface Quality S1 | - | Surface Quality S2 | - | |
| Surface Flatness | - | Laser Damage Threshold | 0.2J/cm² @800nm | |
| Coating Type | Dielectric Coating | Coating Specifications | HR>99.0%@700-870nm |
Traders City price 828.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
