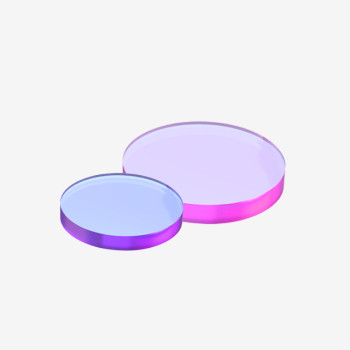

| Coad | 667264 | Type | 800nm Chirped Mirror | |
| Dimension(mm) | 50.8 x 12.7 | Polarization | P | |
| Diameter | 50.8mm | Thickness | 12.7mm | |
| Wavelength(nm) | 690 - 880 | Central Wavelength | 785nm | |

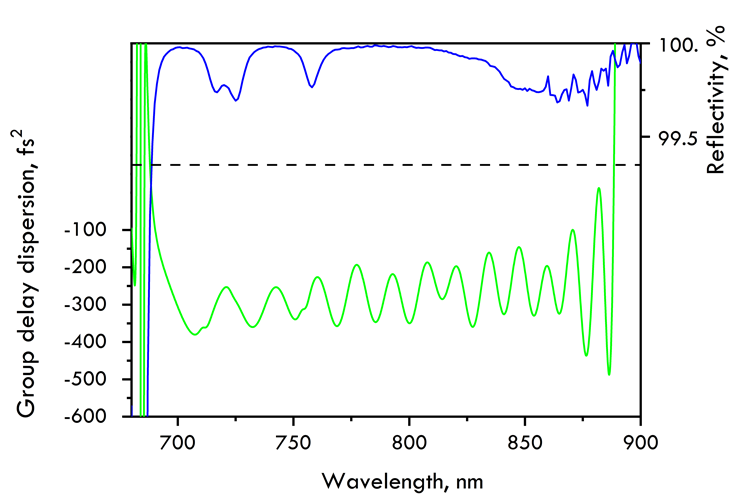

| GDD(fs²) | -275 | AOI(°) | 7 | |
| Substrate | UVFS | Clear Aperture | - | |
| Surface Quality S1 | - | Surface Quality S2 | - | |
| Surface Flatness | - | Laser Damage Threshold | 0.2J/cm² @800nm | |
| Coating Type | Dielectric Coating | Coating Specifications | R>99.5%@690-880nm |
Traders City price 1046.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
