| Coad | 667259 | Type | 800nm Chirped Mirror | |
| Dimension(mm) | 80.0 x 20.0 x 20.0 | Polarization | P | |
| Diameter | 80.0mm x 20.0mm | Thickness | 20.0mm | |

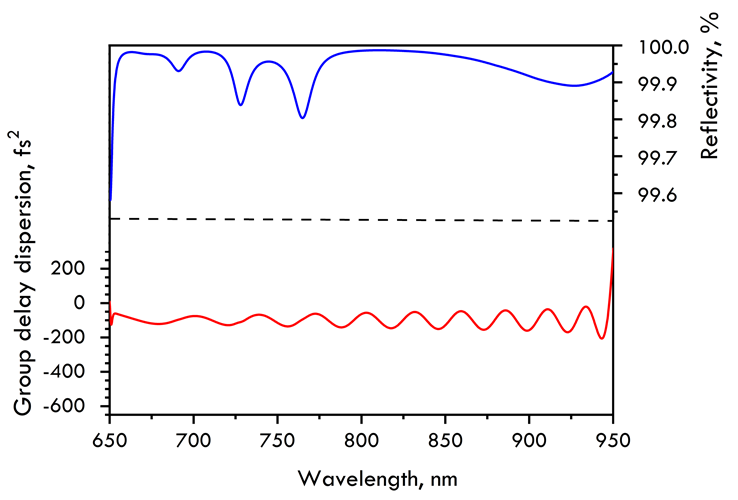

| Wavelength(nm) | 650 - 950 | Central Wavelength | 800nm | |
| GDD(fs²) | -100 | AOI(°) | 5 | |
| Substrate | UVFS | Clear Aperture | - | |
| Surface Quality S1 | - | Surface Quality S2 | - | |
| Surface Flatness | - | Laser Damage Threshold | 0.2J/cm² @800nm | |
| Coating Type | Dielectric Coating | Coating Specifications | R>99.8%@650-950nm |
Traders City price 1830.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
