| Code | 667159 | Type | Universal Joint Mount | |
| Surface treatment | Black anodized | Main material | 6061-T6 aluminum alloy, 304 stainless steel | |
| Mounting surface diameter | 6mm | Number of 90° positioned mounting surfaces | 4 | |
| Cone angle range | 50° | Thread hole specification | M4/M6 |
Adjustable within a 50° cone angle range
Four 90° adjustable positions
M6 mounting hole on the base

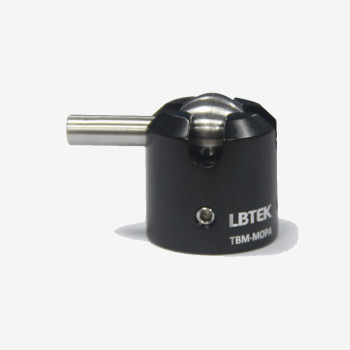

The LBTEK Universal Joint Mount allows for fixing the mounting surface within a 50° cone angle range. The base of the mount has four U-shaped grooves, enabling the mounting surface to be positioned at 90° relative to the base. The mount features a Ø6 mm diameter mounting surface with an M4 threaded hole at the center, compatible with other optical mechanical components. The four U-shaped grooves on the base correspond to four fixed screws. By using two adjacent fixed screws, the position of the mounting surface can be locked, and these screws also serve to adjust tension. When the four fixed screws are tightened, the torque generated by the mounted component reaches the maximum torque. The bottom plate of the base has an M6 mounting hole, making it compatible with other optical mechanical components.
