| Coad | 667154 | Type | Damage-Resistant Ultraviolet Mirror | |
| Diameter(mm) | 25.40 | Thickness(mm) | 6.35 | |
| Diameter Tolerance | +0/-0.1mm | Thickness Tolerance | +0/-0.1mm | |
| Wavelength(nm) | 355 | AOI(°) | 45 | |
| Substrate | UVFS | Clear Aperture | >80% | |
| Parallelism | <5 arcmin | Surface Quality S1 | 10-5 S-D per Clear aperture (80%) (MIL-PRF-13830B) | |
| Surface Quality S2 | 10-5 S-D per Clear aperture (80%) (MIL-PRF-13830B) | Surface Flatness | <λ/8@633nm per | |
| GDD | - | Laser Damage Threshold | - | |

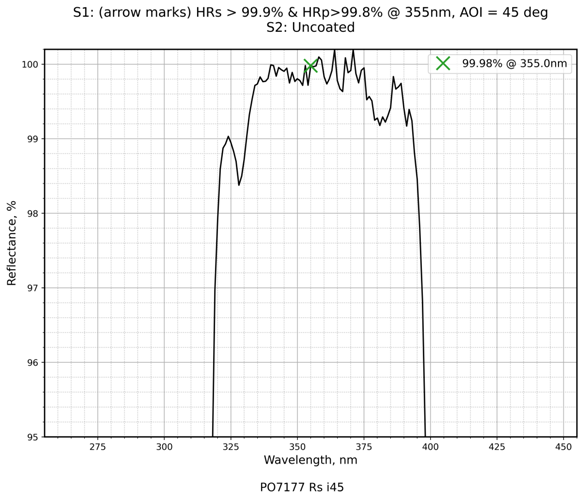

| Coating Type | IBS Coating | Coating Specifications | S1:HRs>99.9%&HRp>99.8%@355nm / S2:Uncoated |
Traders City price 173.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
