| Coad | 667150 | Type | Damage-Resistant Ultraviolet Mirror | |
| Diameter(mm) | 12.70 | Thickness(mm) | 6.35 | |
| Diameter Tolerance | +0/-0.1mm | Thickness Tolerance | +0/-0.1mm | |
| Wavelength(nm) | 355 | AOI(°) | 32 - 45 | |
| Substrate | UVFS | Clear Aperture | >10mm | |
| Parallelism | <5 arcmin | Surface Quality S1 | 10-5 S-D over CA as per MIL | |
| Surface Quality S2 | Inspection polished | Surface Flatness | <λ/8@633nm over CA | |
| GDD | - | Laser Damage Threshold | >7J/cm2@355nm,6ns,100Hz | |

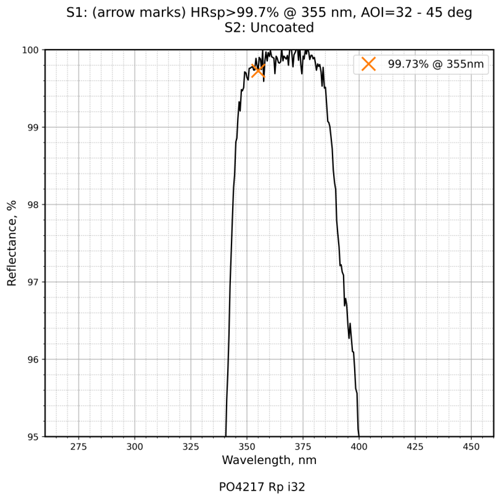

| Coating Type | IBS Coating | Coating Specifications | S1:HRsp>99.7%@355nm / S2:Uncoated |
Traders City price 158.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
