| Coad | 667146 | Type | Damage-Resistant Ultraviolet Mirror | |
| Diameter(mm) | 12.70 | Thickness(mm) | 6.35 | |
| Diameter Tolerance | +0/-0.1mm | Thickness Tolerance | +0/-0.1mm | |
| Wavelength(nm) | 343 | AOI(°) | 0 - 10 | |
| Substrate | UVFS | Clear Aperture | ≥11mm | |
| Parallelism | <10 arcsec | Surface Quality S1 | 20-10 S-D per CA | |
| Surface Quality S2 | Commercial polish (80-50 S-D) | Surface Flatness | <λ/8@633nm per 10mm dia. CA | |
| GDD | - | Laser Damage Threshold | - | |

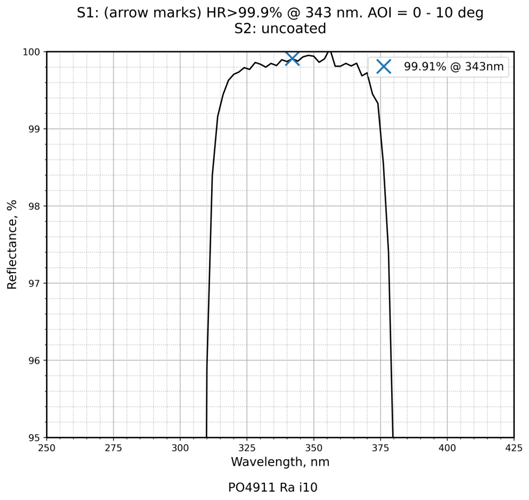

| Coating Type | IBS Coating | Coating Specifications | S1:HR>99.9%@343nm / S2:Uncoated |
Traders City price 144.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
