| Coad | 667138 | Type | Damage-Resistant Ultraviolet Mirror | |
| Diameter(mm) | 25.40 | Thickness(mm) | 6.35 | |
| Diameter Tolerance | +0/-0.1mm | Thickness Tolerance | +0/-0.1mm | |
| Wavelength(nm) | 320 - 370 | AOI(°) | 45 | |
| Substrate | UVFS | Clear Aperture | >80% | |
| Parallelism | <10 arcsec | Surface Quality S1 | 10-5 S-D | |
| Surface Quality S2 | COMMERCIAL POLISH (80-50 S-D) | Surface Flatness | <λ/10@633nm over CA | |
| GDD | GDD Rp=0 +/-10 fs^2 @ 330 - 360 nm | Laser Damage Threshold | >0.1J/cm2,100fs,343nm | |

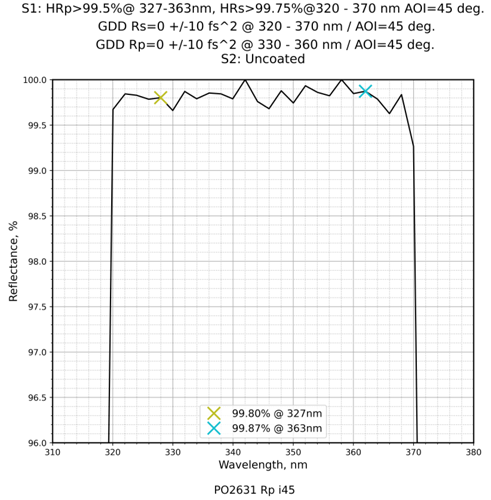

| Coating Type | IBS Coating | Coating Specifications | S1:HRp>99.5%@327-363nm+HRs>99.75%@320-370nm / S2:Uncoated |
Traders City price 252.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
