| Coad | 667136 | Type | Damage-Resistant Ultraviolet Mirror | |
| Diameter(mm) | 25.40 | Thickness(mm) | 6.35 | |
| Diameter Tolerance | +0/-0.1mm | Thickness Tolerance | +0/-0.1mm | |
| Wavelength(nm) | 257 | AOI(°) | 45 | |
| Substrate | UVFS | Clear Aperture | ≥20mm | |
| Parallelism | <5 arcmin | Surface Quality S1 | 20-10 S-D over CA (MIL-PRF-13830B) | |
| Surface Quality S2 | 20-10 S-D over CA (MIL-PRF-13830B) | Surface Flatness | <λ/8@633nm any 5mm aperture within CA | |
| GDD | Low GDD | Laser Damage Threshold | - | |

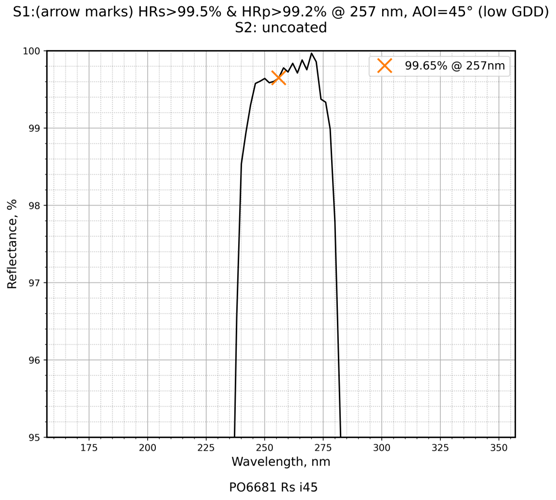

| Coating Type | IBS Coating | Coating Specifications | S1:HRs>99.5%&HRp>99.2%@257nm / S2:Uncoated |
Traders City price 252.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
