| Coad | 667131 | Type | Damage-Resistant Ultraviolet Mirror | |
| Diameter(mm) | 25.40 | Thickness(mm) | 6.35 | |
| Diameter Tolerance | +0/-0.1mm | Thickness Tolerance | +0/-0.1mm | |
| Wavelength(nm) | 196 - 200 | AOI(°) | 45 | |
| Substrate | UVFS | Clear Aperture | >85% | |
| Parallelism | <10 arcsec | Surface Quality S1 | 20-10 S-D per CA as per MIL-PRF-13830B | |
| Surface Quality S2 | Polished | Surface Flatness | <λ/5@633nm per CA | |
| GDD | - | Laser Damage Threshold | - | |

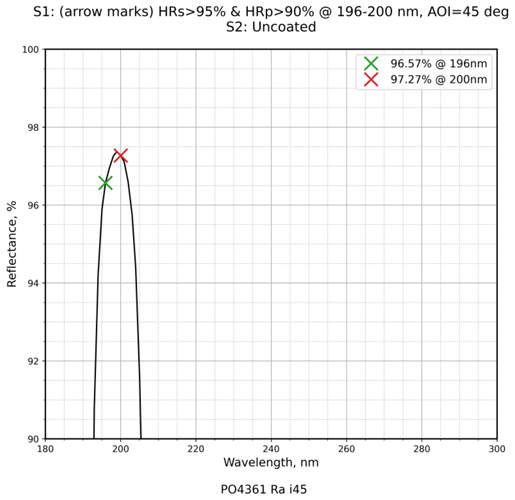

| Coating Type | IBS Coating | Coating Specifications | S1:HRs>95%&HRp>90%@196-200nm / S2:Uncoated |
Traders City price 202.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
