| Code | 667128 | Type | Ø25mm rod adapter | |
| Material | 6061-T6 aluminum alloy | Surface treatment | Black anodizing | |
| Parallelism tolerance | 0.03mm | Center countersink hole specification | M4 | |
| Center countersink hole diameter | Ø8mm ±0.03mm | Center through hole diameter | Ø4.5mm ±0.03mm | |
| Countersink groove width | 8mm ±0.03mm | Through groove width | 4.5mm ±0.03mm | |
| Quantity | 1 piece |
Traders City price 9.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
Clamps multiple optical components compactly onto the same rod
Compatible with Ø25 mm and Ø12.7 mm rods
Center countersink hole type: M4

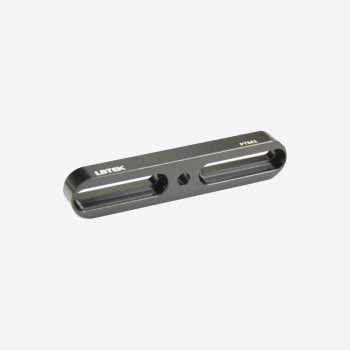

The LBTEK PTM1 is a bracket adapter that can clamp multiple optical components compactly onto the same rod, avoiding the use of multiple rods and connectors, thus saving space. This bracket is compatible with Ø25 mm and Ø12.7 mm rods and uses M4 screws through the center countersink hole or two side countersink grooves to achieve central or eccentric mounting. When optical mechanical components are mounted in the side M4 countersink grooves, they can be offset from the center of the bracket adapter’s M4 countersink hole by a distance of 10 mm to 36 mm.
