| Code | 667127 | Type | Ø25mm rod adapter | |
| Material | 6061-T6 aluminum alloy | Surface treatment | Black anodizing | |
| Adapter rod diameter | Ø25mm to Ø12.7mm | Locking screw type | M6 (1 piece), Knurled knob (1 piece) | |
| Perpendicularity tolerance | 0.02mm | Fixed angle | 90° | |
| Adapter rod diameter tolerance | Ø25mm (+0.01mm~+0.08mm), Ø12.7mm (0~+0.05mm) | Quantity | 1 piece |
Traders City price 10.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
Clamps Ø25 mm to Ø12.7 mm rods
Fixed angle: 90°
M6 hex screw and knurled knob for locking

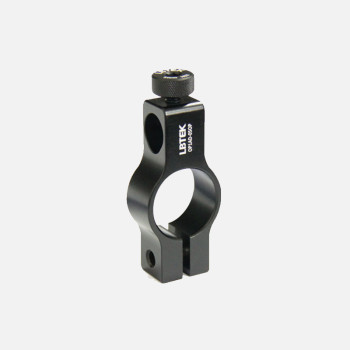

The LBTEK OP1AD-05OP is an Ø25 mm rod accessory that connects Ø25 mm and Ø12.7 mm rods at a 90° angle, providing a firm, stable, and compact assembly to maximize space utilization and meet laboratory requirements. The Ø25 mm end uses an M6 hex screw to provide the necessary clamping force, while the Ø12.7 mm end features an M6 knurled knob (can be reinforced with a 5 mm HEX wrench) to provide the required holding force. The limiting installation hole (Ø12.7 mm) has stable dual-line contact, ensuring the entire assembly is solid and reliable.
