| Code | 667116 | Type | Ø25mm rod adapter | |
| Material | 6061-T6 aluminum alloy | Surface treatment | Black anodizing | |
| Applicable coaxial system type | 60mm | Clamping direction | Horizontal or vertical | |
| Clamping rod diameter | 25mm | Clamping rod diameter tolerance | +0.05mm/+0.1mm | |
| Locking screw type | M6 (1 piece), M4 (1 piece) | Perpendicularity tolerance | 0.024mm | |
| Quantity | 1 piece |
Traders City price 84.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
Clamps Ø25 mm rod
Clamps 30 mm or 60 mm coaxial systems
Can be clamped horizontally or vertically

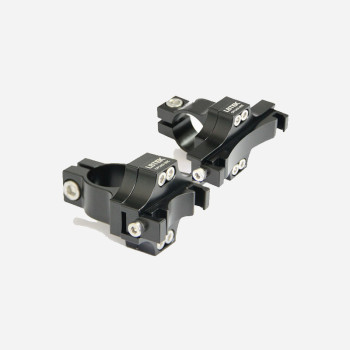

The LBTEK OP1AD-30C and OP1AD-60C are Ø25 mm rod accessories suitable for Ø25 mm rods. The M6 screws on the side are used to secure the entire adapter firmly onto the Ø25 mm rod. The OP1AD-30C and OP1AD-60C can clamp 30 mm and 60 mm coaxial systems, respectively, and can be clamped either horizontally or vertically. The clamping position at the bottom allows quick clamping of two parallel coaxial rods and is locked in both directions using a single M4 screw.
