| Code | 667114 | Type | Ø25mm rod adapter | |
| Material | 6061-T6 aluminum alloy | Surface treatment | Black anodizing | |
| Clamping diameter | 25mm | Mounting plate dimensions | 50.8mm × 50.8mm | |
| Thread holes | M4 (25 pcs), M6 (24 pcs) | Thread hole pitch | 12.5mm | |
| Clamping diameter tolerance | +0.04mm/+0.08mm | Parallelism tolerance | 0.02mm | |
| Clamping center to base distance | 29.2mm | Overall height | 58.2mm | |
| Quantity | 1 piece |
Clamps Ø25 mm mechanical or optical components
Mounting plate dimensions: 50.8 mm × 50.8 mm
Mounting plate provides M4 (25 pcs) and M6 (24 pcs) threaded holes
Pitch between similar threaded holes: 12.5 mm
Side fixing screw type: M6

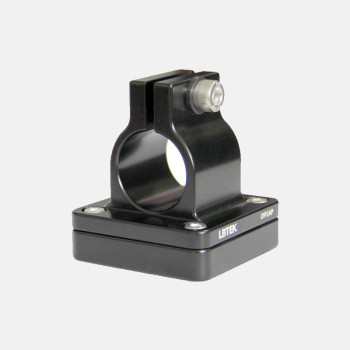

The LBTEK OP1AP rod adapter is an Ø25 mm rod accessory that clamps Ø25 mm mechanical or optical components and serves as a Ø25 mm rod adapter. The M6 screws on the side are used to tighten the clamping structure. The OP1AP is connected to a 50.8 mm × 50.8 mm mounting plate at the bottom, with a cross-pattern array of 25 M4 and 24 M6 threaded holes. The pitch between similar threaded holes is 12.5 mm. The threaded holes on the mounting plate can be used to fix various optical mechanical bases and mirror mounts. The OP1AP can also be used to support optical rods and adapters, acting as a fixture for optical mechanical or optical components.
