| Code | 667112 | Type | Gapless Clamping Block | |
| Material | 316L Stainless Steel | Surface Finish | Passivated | |
| Countersunk Slot Length | 33mm | Included Screws/Quantity | 1 × M6×25mm Hex Socket Head Cap Screw | |
| Compatible Rod Size | Ø25mm | Mounting Hole Depth | 15.2mm |
Compatible with: Ø25 mm Rods
Available Countersunk Slot Lengths: 19 mm, 33 mm
Mounting Hole Depth: 15.2 mm, with a maximum distance of 6.4 mm from the hole bottom to the fixed position
Contact Points: 3-point contact, flexible clamping mechanism

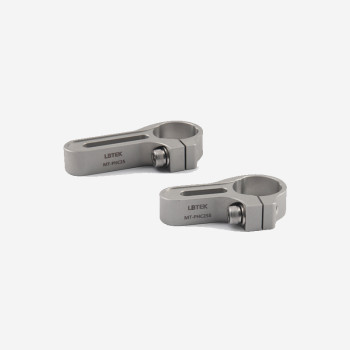

The LBTEK Gapless Flexible Clamping Block is designed for mounting Ø25 mm rods. The flexible clamp and mounting slots are secured with separate screws. The rod is locked in place using an M6 hex socket head cap screw on the flexible side. Each clamping block includes one M6×25 mm hex socket head cap screw and one Ø6 mm flat washer for waist-shaped hole installation.
Due to the flexible design, do not tighten the screws while the block is in an unclamped state, as this may damage the product.
