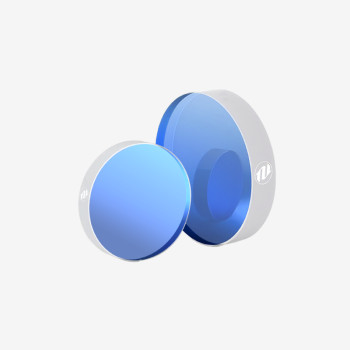

| Coad | 667098 | Type | Harmonic Beam Splitter | |
| Dimension(mm) | 25.4 x 3.0 | AOI(°) | 45 | |
| Diameter | 25.4mm | Thickness | 3.0mm | |
| HR Wavelength (nm) | 515 | HT Wavelength (nm) | 1030 | |
| Substrate | UVFS | Clear Aperture | - | |
| Parallelism | - | Protective Chamfer | - | |
| Surface Quality S1 | 20-10 S-D | Surface Quality S2 | - | |
| Surface Flatness | λ/8@633nm | Coating Type | Dielectric Coating | |
| Reflectivity | >99.5% | Transmittance | - | |
| Coating Parameter S1 | AR@1030nm&HR@515nm,R＞99.5% | Coating Parameter S2 | Uncoated |
Traders City price 264.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
