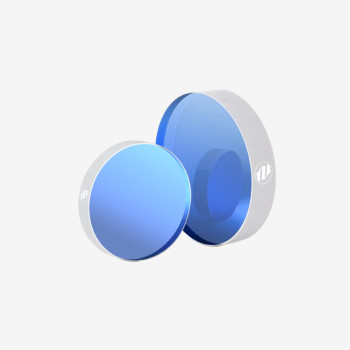

| Coad | 667095 | Type | Harmonic Beam Splitter | |
| Dimension(mm) | 20.0 x 3.0 | AOI(°) | 45 | |
| Diameter | 20.0mm +0/-0.1 mm | Thickness | 3.0mm +0/-0.1 mm | |
| HR Wavelength (nm) | 515 | HT Wavelength (nm) | 1030 | |
| Substrate | UVFS Corning 7980 0F | Clear Aperture | >90% | |
| Parallelism | <5 arcmin | Protective Chamfer | 0.1-0.3mm x 45° | |
| Surface Quality S1 | 10-5 S-D per CA as per MIL-PRF-13830B | Surface Quality S2 | Polished | |
| Surface Flatness | <λ/10@633nm per CA | Coating Type | IBS | |
| Reflectivity | >99.9% | Transmittance | >96% | |

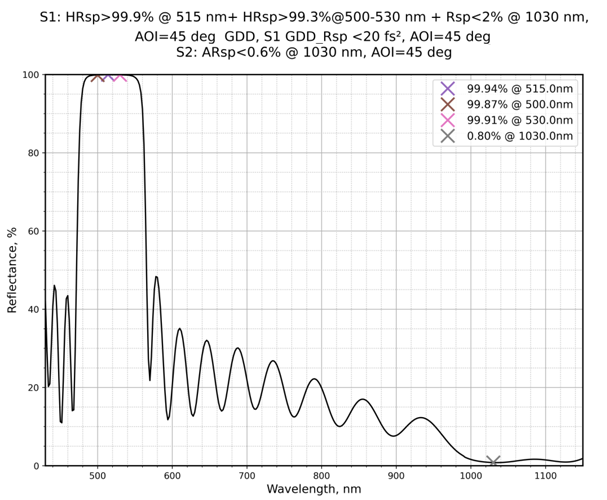

| Coating Parameter S1 | HRsp>99.9%@515nm+Rsp<4%@1030nm | Coating Parameter S2 | ARsp<0.6%@1030nm |
Traders City price 101.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
