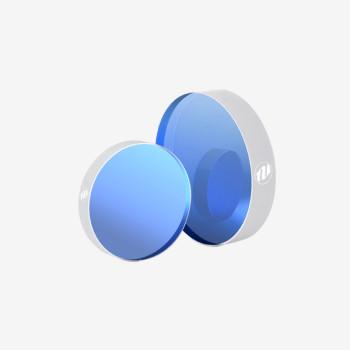

| Coad | 667092 | Type | Harmonic Beam Splitter | |
| Dimension(mm) | 25.4 x 6.35 | AOI(°) | 45 | |
| Diameter | 25.4mm +0/-0.1 mm | Thickness | 6.35mm +0/-0.1 mm | |
| HR Wavelength (nm) | 510 - 530 | HT Wavelength (nm) | 1030 | |
| Substrate | UVFS Corning 7980 0F | Clear Aperture | >80% | |
| Parallelism | <10 arcsec | Protective Chamfer | 0.2-0.4mm x 45° | |
| Surface Quality S1 | 20-10 S-D (MIL-PRF-13830B | Surface Quality S2 | 20-10 S-D (MIL-PRF-13830B | |
| Surface Flatness | <λ/10@633nm over 15mm area | Coating Type | IBS | |
| Reflectivity | >99.9% | Transmittance | >99% | |

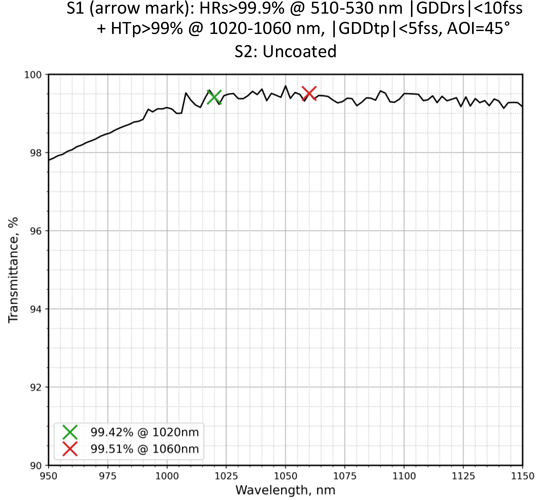

| Coating Parameter S1 | HRs>99.9%@510-530nm+HTp>99%@1020-1060nm,AOI=45° | Coating Parameter S2 | Uncoated |
Traders City price 331.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
