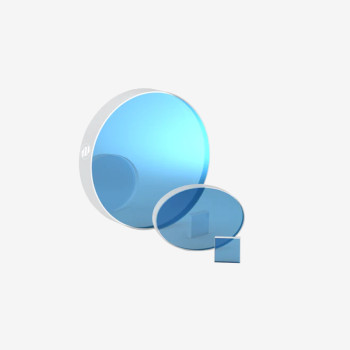

| Coad | 667056 | Type | Plane Dichroic Mirror | |
| Dimension(mm) | 25.4 x 6.35 | AOI(°) | 0 - 10 | |
| Diameter | 25.4mm +0/-0.1mm | Thickness | 6.35mm +0/-0.1mm | |
| HR Wavelength (nm) | 1030 | HT Wavelength (nm) | 940 | |
| Substrate | UVFS | Clear Aperture | - | |
| Parallelism | - | Protective Chamfer | - | |
| Surface Quality S1 | - | Surface Quality S2 | - | |
| Surface Flatness | <λ/6@633nm | Coating Type | IBS | |
| Reflectivity | - | Transmittance | - | |
| Coating Parameter S1 | HR@1030nm&AR@940nm | Coating Parameter S2 | Uncoated |
Traders City price 357.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
