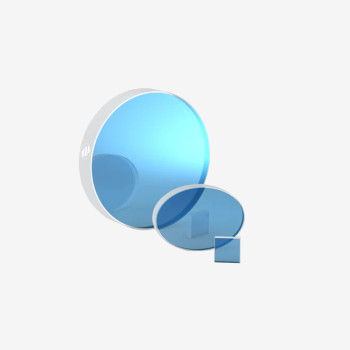

| Coad | 667054 | Type | Plane Dichroic Mirror | |
| Dimension(mm) | 12.7 x 3.0 | AOI(°) | 45 | |
| Diameter | 12.7mm | Thickness | 3.0mm | |
| HR Wavelength (nm) | 1000 - 2000 | HT Wavelength (nm) | 2000 - 3000 | |
| Substrate | UVFS | Clear Aperture | - | |
| Parallelism | - | Protective Chamfer | - | |
| Surface Quality S1 | - | Surface Quality S2 | - | |
| Surface Flatness | - | Coating Type | Dielectric Coating | |
| Reflectivity | >95% | Transmittance | >90% | |
| Coating Parameter S1 | R>95%@1000-2000nm，T>90%@2000-3000nm | Coating Parameter S2 | Uncoated |
Traders City price 214.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
