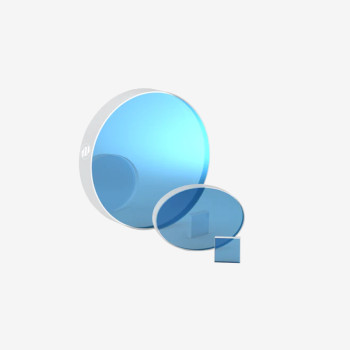

| Coad | 667043 | Type | Plane Dichroic Mirror | |
| Dimension(mm) | 25.4 x 3.0 | AOI(°) | 60 | |
| Diameter | 25.4mm | Thickness | 3.0mm | |
| HR Wavelength (nm) | 225 - 270 | HT Wavelength (nm) | 270 - 2600 | |
| Substrate | UVFS Corning 7980 0F | Clear Aperture | - | |
| Parallelism | - | Protective Chamfer | - | |
| Surface Quality S1 | 20-10 S-D | Surface Quality S2 | - | |
| Surface Flatness | λ/10@633mm | Coating Type | IBS | |
| Reflectivity | >98.5% | Transmittance | >97% | |
| Coating Parameter S1 | HRs>98.5%@225-270nm&HTp>97%@270-2600nm | Coating Parameter S2 | Uncoated |
Traders City price 357.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
