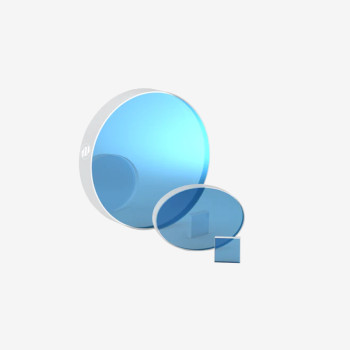

| Coad | 667037 | Type | Plane Dichroic Mirror | |
| Dimension(mm) | 30.0 x 20.0 x 6.0 | AOI(°) | 45 | |
| Diameter | 30.0mm x 20.0mm +0/-0.1mm | Thickness | 6.0mm +0/-0.1mm | |
| HR Wavelength (nm) | 1030 | HT Wavelength (nm) | 969 - 976 | |
| Substrate | UVFS Corning 7980 0F | Clear Aperture | ≥25x16mm | |
| Parallelism | <30 arcsec | Protective Chamfer | 0.25mm x 45° | |
| Surface Quality S1 | 20-10 S-D (over CA) | Surface Quality S2 | 20-10 S-D (over CA) | |
| Surface Flatness | λ/8 or better@633nm per Dia 10mm | Coating Type | IBS | |
| Reflectivity | >98% | Transmittance | >95% | |

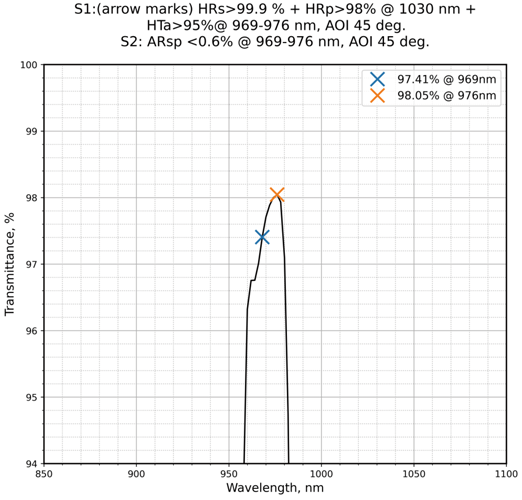

| Coating Parameter S1 | HRs>99.9%+HRp>98%@1030nm+HTa>95%@969-976nm | Coating Parameter S2 | ARsp<0.6%@969-976nm |
Traders City price 418.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
