| Coad | 667034 | Type | Plane Dichroic Mirror | |
| Dimension(mm) | 25.4 x 6.35 | AOI(°) | 45 | |
| Diameter | 25.4mm +0/-0.1mm | Thickness | 6.35mm +0/-0.1mm | |
| HR Wavelength (nm) | 1030 | HT Wavelength (nm) | 940 | |
| Substrate | UVFS | Clear Aperture | ≥20mm | |
| Parallelism | <5 arcmin | Protective Chamfer | 0.2-0.3mm x 45° | |
| Surface Quality S1 | 20-10 S-D per CA | Surface Quality S2 | 20-10 S-D per CA | |
| Surface Flatness | <λ/4@633nm per CA | Coating Type | IBS | |
| Reflectivity | >99% | Transmittance | >98% | |

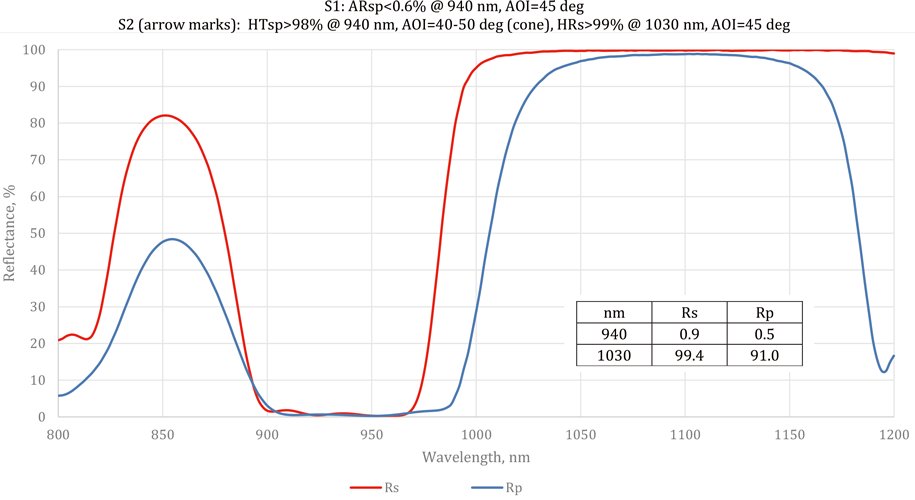

| Coating Parameter S1 | HRs>99%@1030nm+HTsp>98%@940nm | Coating Parameter S2 | HTsp>98%@940nm,HRs>99%@1030nm |
Traders City price 245.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
