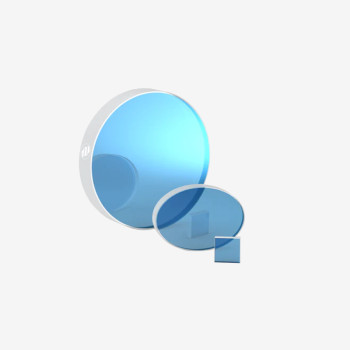

| Coad | 667033 | Type | Plane Dichroic Mirror | |
| Dimension(mm) | 25.4 x 6.35 | AOI(°) | 0 - 10 | |
| Diameter | 25.4mm +0/-0.1mm | Thickness | 6.35mm +0/-0.1mm | |
| HR Wavelength (nm) | 1020 - 1040 | HT Wavelength (nm) | 970 - 980 | |
| Substrate | UVFS Corning 7980 0F | Clear Aperture | ≥20mm | |
| Parallelism | <1 arcmin | Protective Chamfer | 0.2-0.4mm x 45° | |
| Surface Quality S1 | 10-5 S-D per CA (MIL-PRF-13830B) | Surface Quality S2 | 10-5 S-D per CA (MIL-PRF-13830B) | |
| Surface Flatness | PV <λ/6@633nm per Dia12.7mm | Coating Type | IBS | |
| Reflectivity | >99.85% | Transmittance | >95% | |

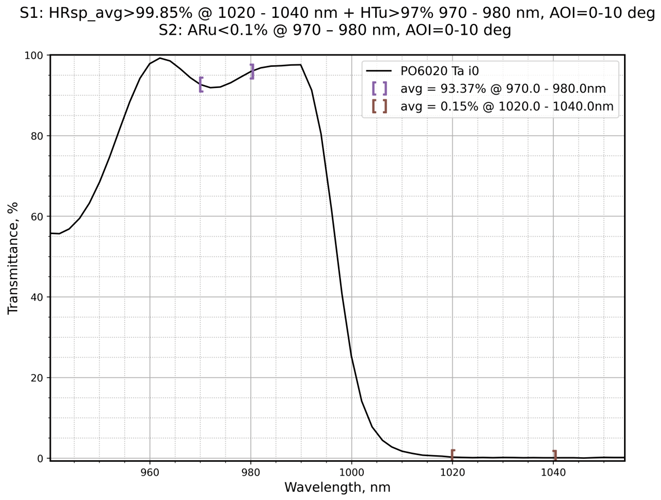

| Coating Parameter S1 | HRsp_avg>99.85%@1020-1040nm+HTu>95%970-980nm | Coating Parameter S2 | ARu<0.1%@970–980nm |
Traders City price 274.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
