| Coad | 667032 | Type | Plane Dichroic Mirror | |
| Dimension(mm) | 25.4 x 3.0 | AOI(°) | 45 | |
| Diameter | 25.4mm +0/-0.1mm | Thickness | 3.0mm +0/-0.1mm | |
| HR Wavelength (nm) | 976 | HT Wavelength (nm) | 1030 | |
| Substrate | UVFS Corning 7980 0F | Clear Aperture | >90% | |
| Parallelism | <10 arcsec | Protective Chamfer | 0.1-0.4mm x 45° | |
| Surface Quality S1 | 20-10 S-D | Surface Quality S2 | 20-10 S-D | |
| Surface Flatness | λ/5@633nm over 10mm area | Coating Type | IBS | |
| Reflectivity | >99.95% | Transmittance | >98% | |

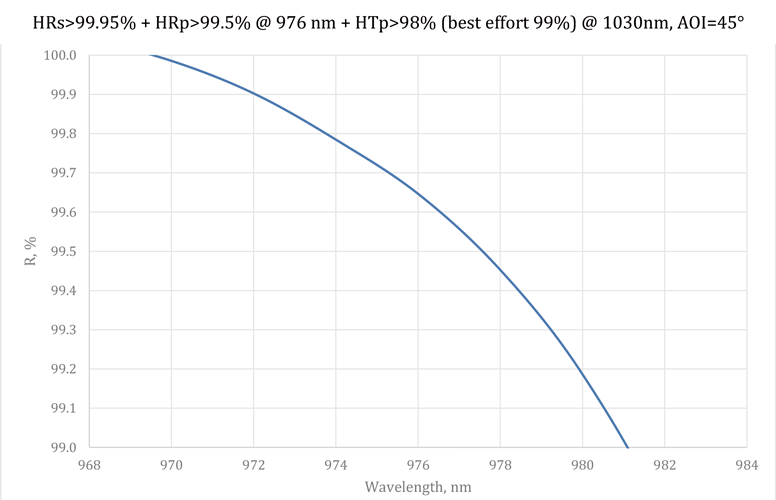

| Coating Parameter S1 | HRs>99.95%+HRp>99.5%@976nm+HTp>98%@1030nm | Coating Parameter S2 | ARp<0.1%@1030nm |
Traders City price 576.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
