| Coad | 667030 | Type | Plane Dichroic Mirror | |
| Dimension(mm) | 76.2 x 12.7 | AOI(°) | 45 | |
| Diameter | 76.2mm +0/-0.1mm | Thickness | 12.7mm +0/-0.1mm | |
| HR Wavelength (nm) | 790 | HT Wavelength (nm) | 1070 | |
| Substrate | Fused Silica | Clear Aperture | ≥64mm | |
| Parallelism | <5 arcmin | Protective Chamfer | 0.2-0.6mm x 45° | |
| Surface Quality S1 | 40-20 S-D per CA | Surface Quality S2 | 40-20 S-D per CA | |
| Surface Flatness | λ/8 - λ/10@633nm over any 30mm aperture within CA | Coating Type | IBS | |
| Reflectivity | >97% | Transmittance | >97% | |

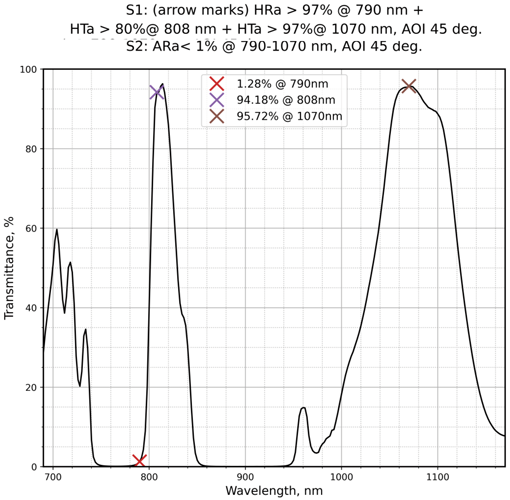

| Coating Parameter S1 | HRa>97%@790nm+HTa>80%@808nm+HTa>97%@1070nm | Coating Parameter S2 | ARa<1%@790-1070nm |
Traders City price 2954.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
