| Coad | 667029 | Type | Plane Dichroic Mirror | |
| Dimension(mm) | 6.0 x 2.0 | AOI(°) | 15 | |
| Diameter | 6.0mm +0/-0.1mm | Thickness | 2.0mm +0/-0.1mm | |
| HR Wavelength (nm) | 780 + 814 | HT Wavelength (nm) | 641 | |
| Substrate | UVFS Corning 7980 0F | Clear Aperture | ≥4mm | |
| Parallelism | <30 arcsec | Protective Chamfer | 0.1-0.2mm x 45° | |
| Surface Quality S1 | 20-10 S-D per CA | Surface Quality S2 | 20-10 S-D per CA | |
| Surface Flatness | - | Coating Type | IBS | |
| Reflectivity | >99.9% | Transmittance | >99% | |

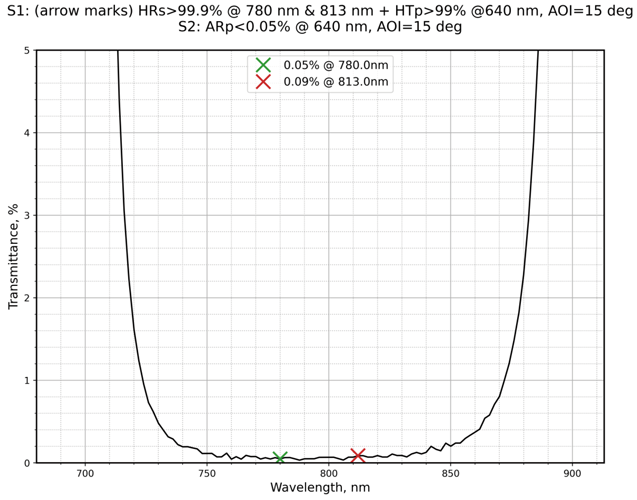

| Coating Parameter S1 | HRs>99.9%@780nm&813nm+HTp>99%@640nm | Coating Parameter S2 | ARp<0.05%@640nm |
Traders City price 130.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
