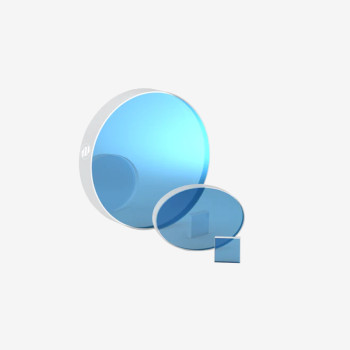

| Coad | 667027 | Type | Plane Dichroic Mirror | |
| Dimension(mm) | 20.0 x 2.0 | AOI(°) | 17 | |
| Diameter | 20.0mm +0/-0.1mm | Thickness | 2.0mm +0/-0.1mm | |
| HR Wavelength (nm) | 780 - 1005 | HT Wavelength (nm) | 1055 - 1550 | |
| Substrate | Suprasil 300 | Clear Aperture | >90% | |
| Parallelism | <30 arcsec | Protective Chamfer | 0.2-0.3mm x 45° | |
| Surface Quality S1 | 10-5 S-D per CA 16 mm pagal MIL-PRF-13830B | Surface Quality S2 | 10-5 S-D per CA 16 mm pagal MIL-PRF-13830B | |
| Surface Flatness | <λ/6@633nm per Dia=16mm | Coating Type | IBS | |
| Reflectivity | >99% | Transmittance | >97% | |

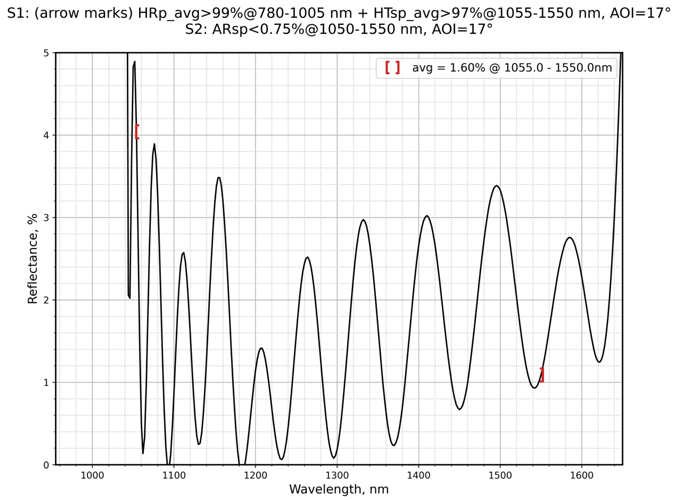

| Coating Parameter S1 | HRp_avg>99%@780-1005nm+HTsp_avg>97%@1055-1550 | Coating Parameter S2 | ARsp<0.75%@1050-1550nm |
Traders City price 231.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
